Territory Configurations Functional User Manual

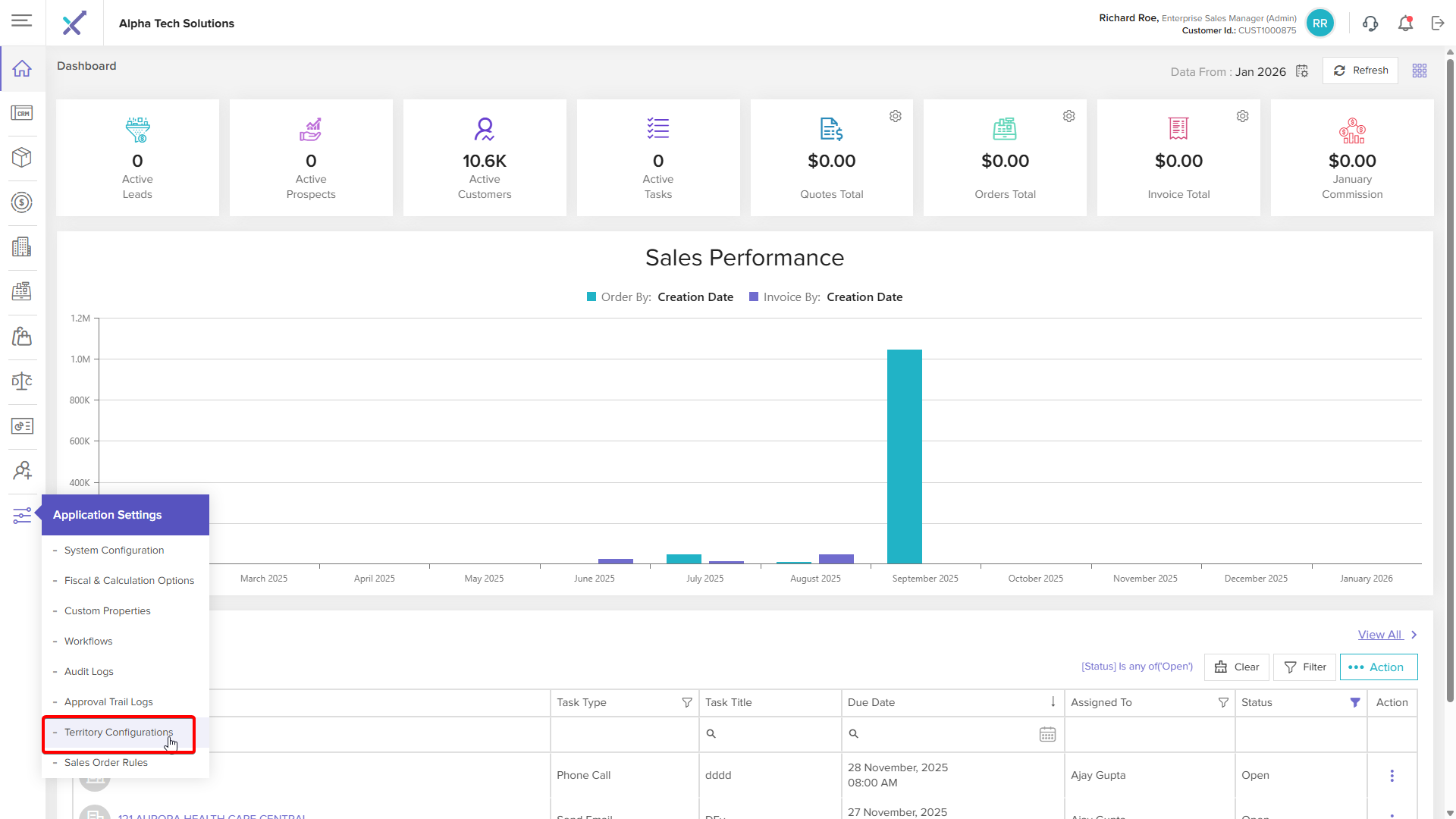

Territory Configurations

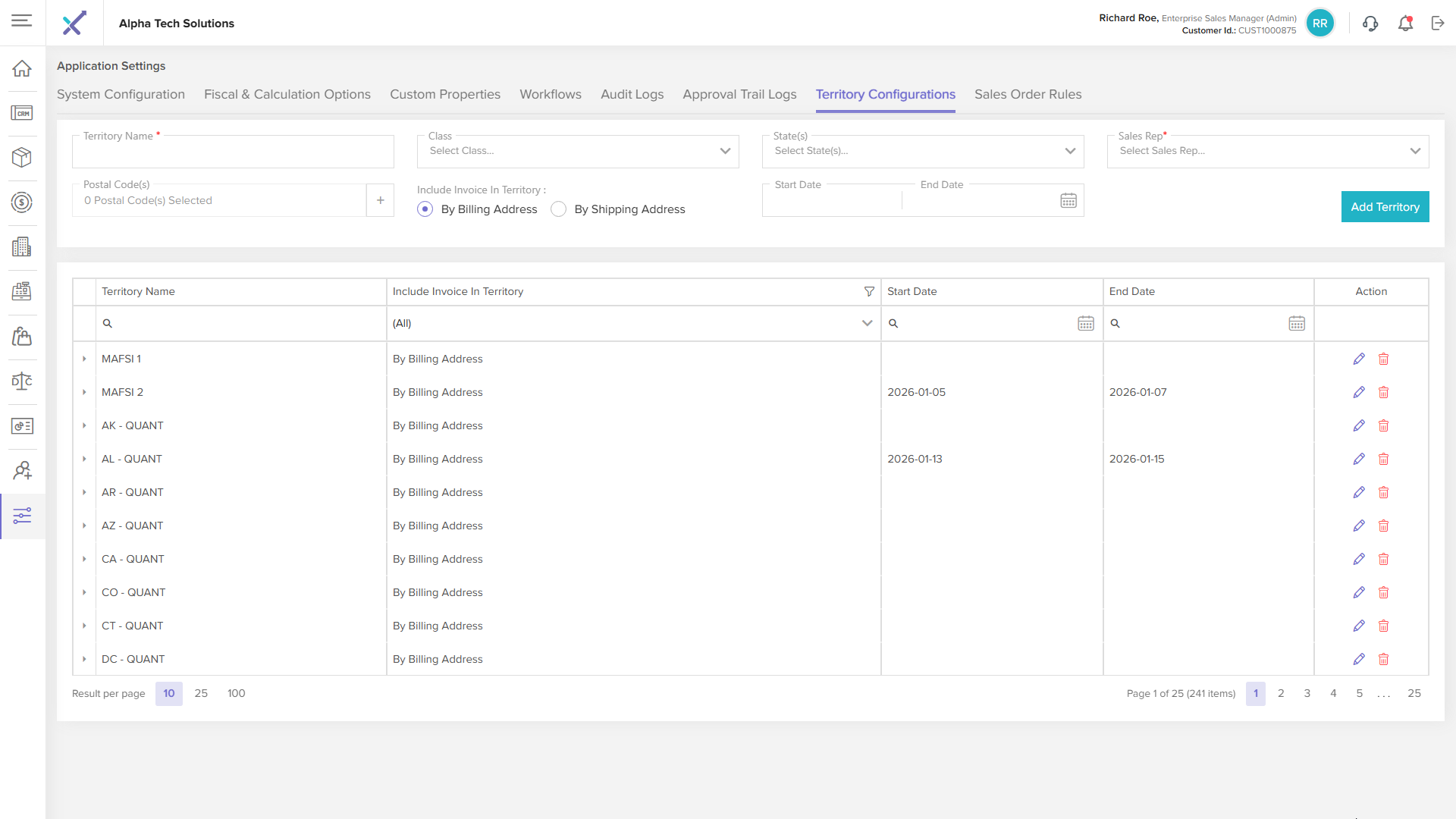

Territory Configuration Listing

Territory Creation

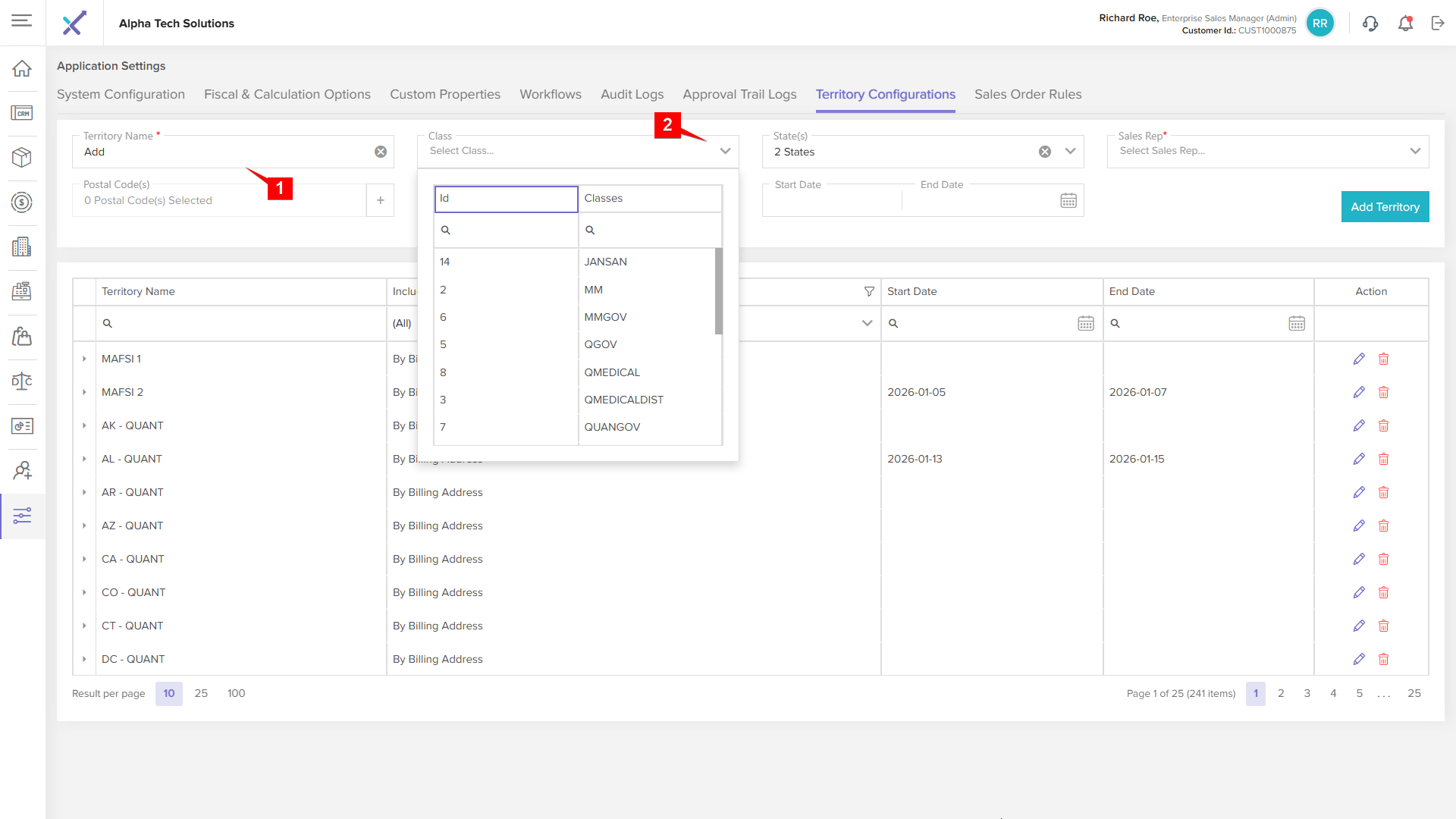

Step 1: Enter Territory Name

Step 2: Click the Class dropdown and select a class from the list

Step 3: Click the State(s) dropdown and check the boxes for the states you want to include

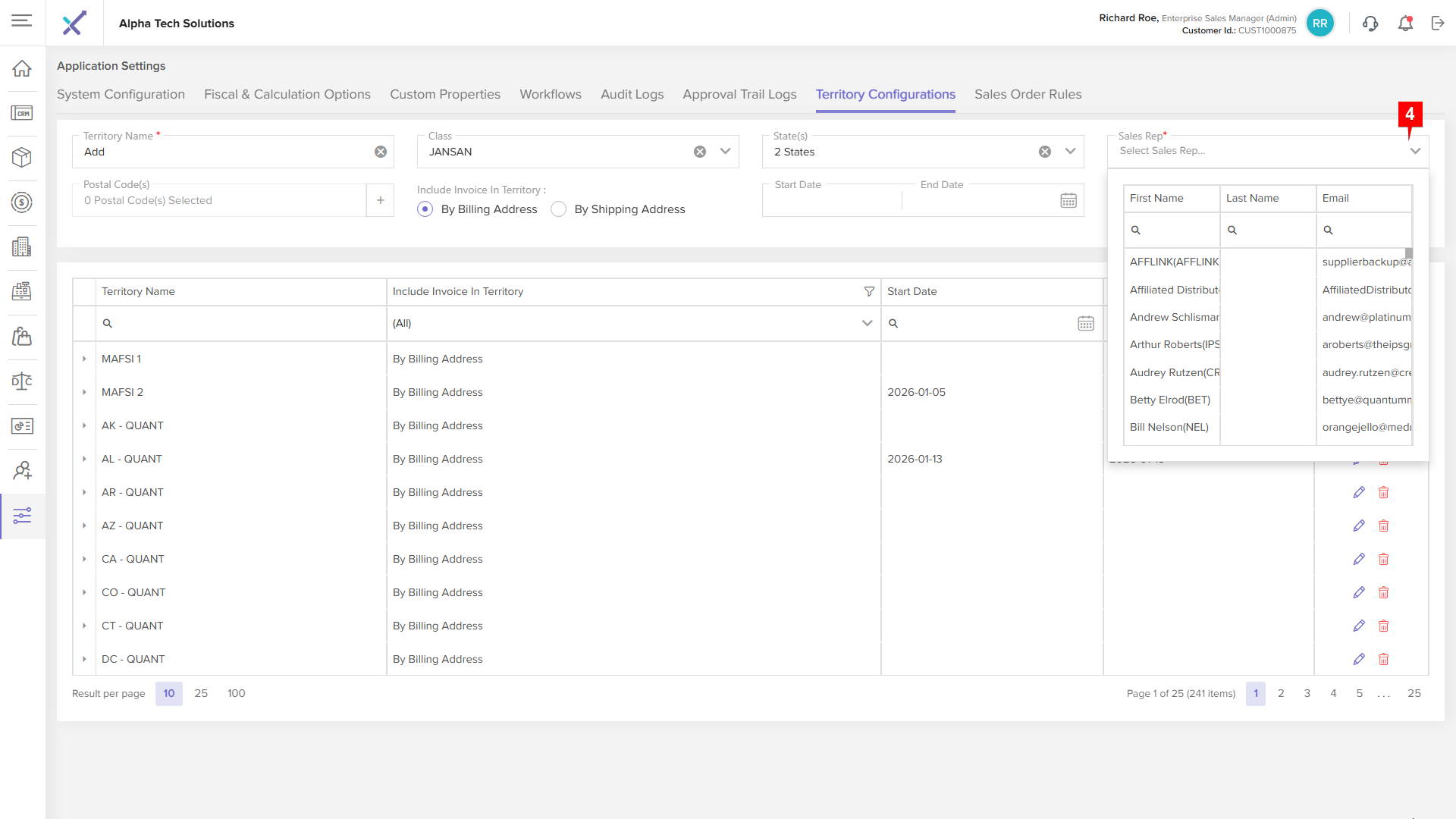

Step 4: Click the Sales Rep dropdown and select the desired representatives

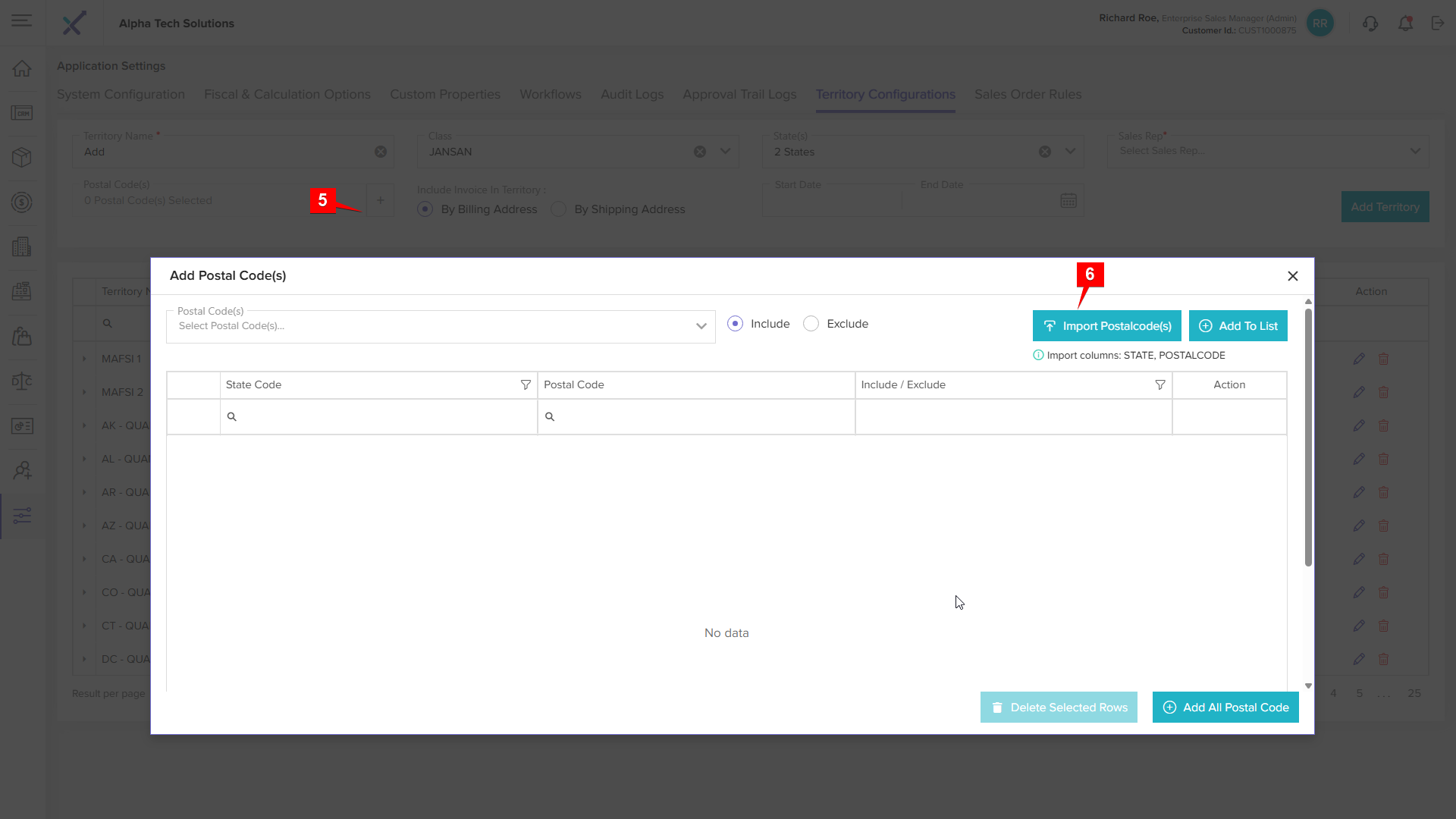

Step 5: Click the Postal Code(s) + icon to open the postal code popup

Step 6: Click Import Postal Code(s)

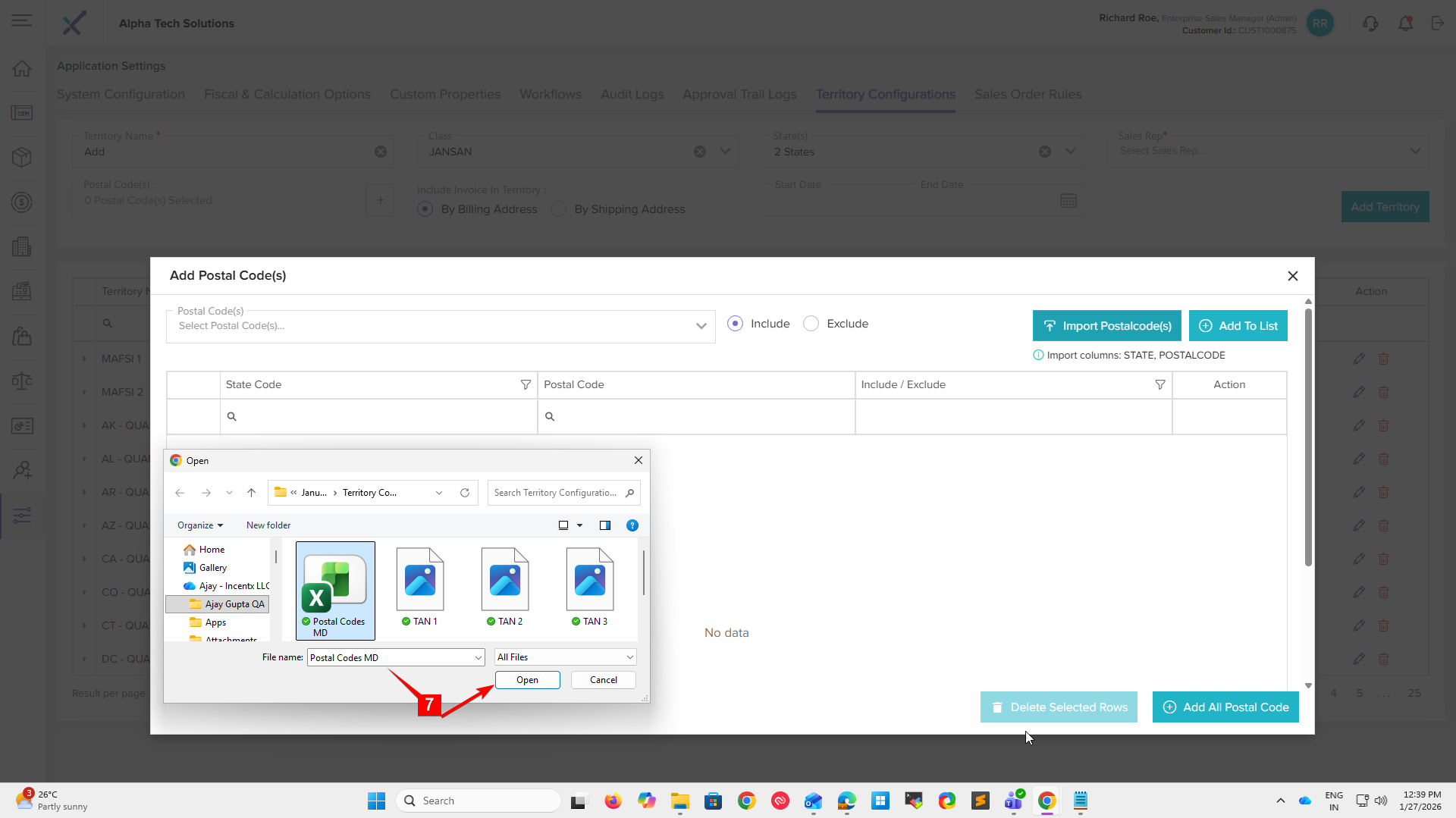

Step 7: Select your Excel file and click Open

After importing, the system will display postal codes as per the file

Note: If your Excel file uses custom column names (e.g., "ABC", "XYZ"), the system will treat the first column as the State Code and the second as the Postal Code

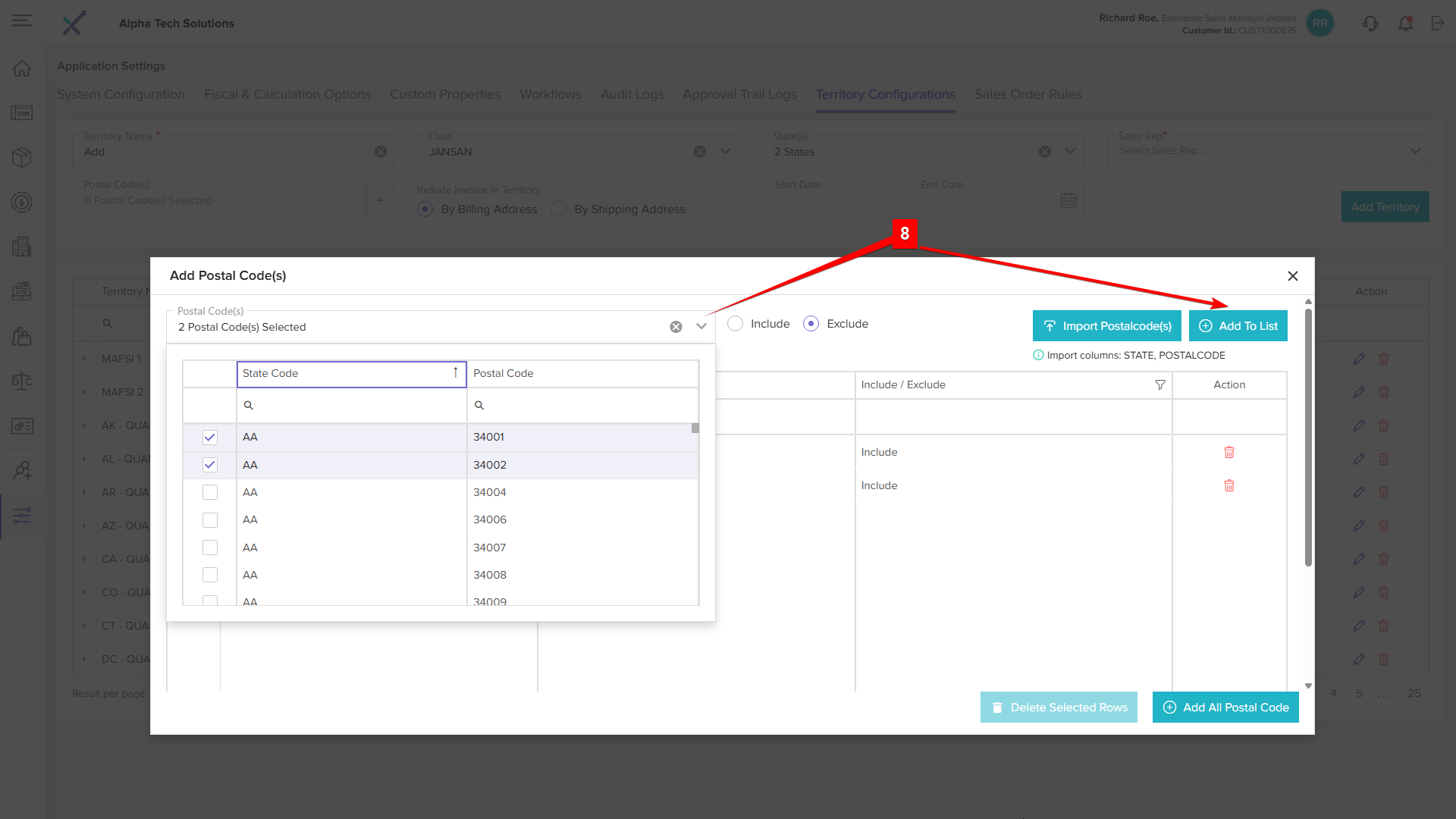

Step 8: To manually add postal codes, use the dropdown to select from the list and choose Include Or Exclude, Click Add to List to confirm your selections

Step 9: Click the Delete icon next to the postal code

Step 10: Confirm by clicking OK to delete, or Cancel to abort the action


To Delete:

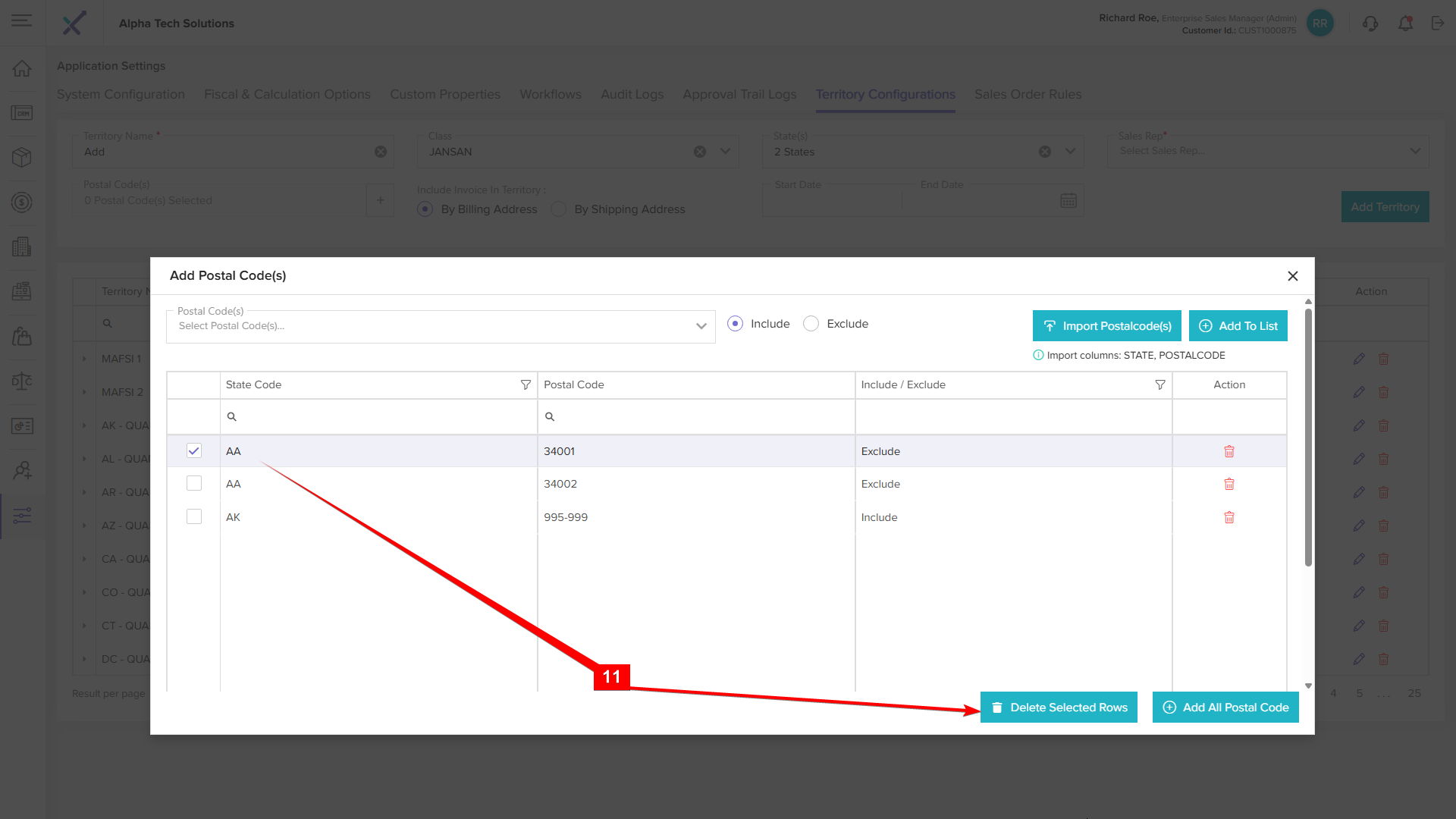

Step 11: Multiple postal codes: Select checkboxes and click Delete Selected Rows, A single postal code: Click the delete icon next to it.

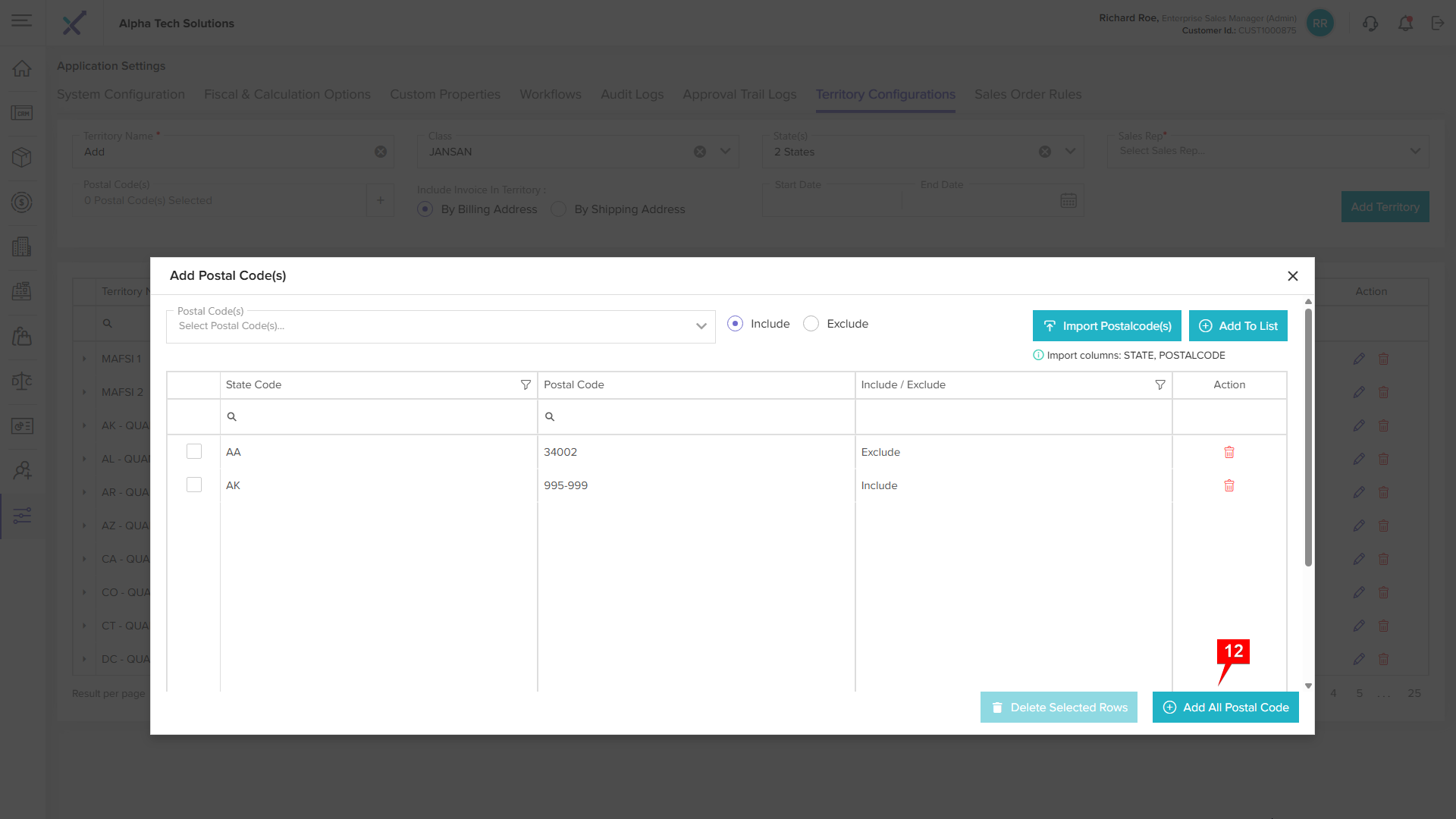

Step 12: Once done, click Add All Postal Codes

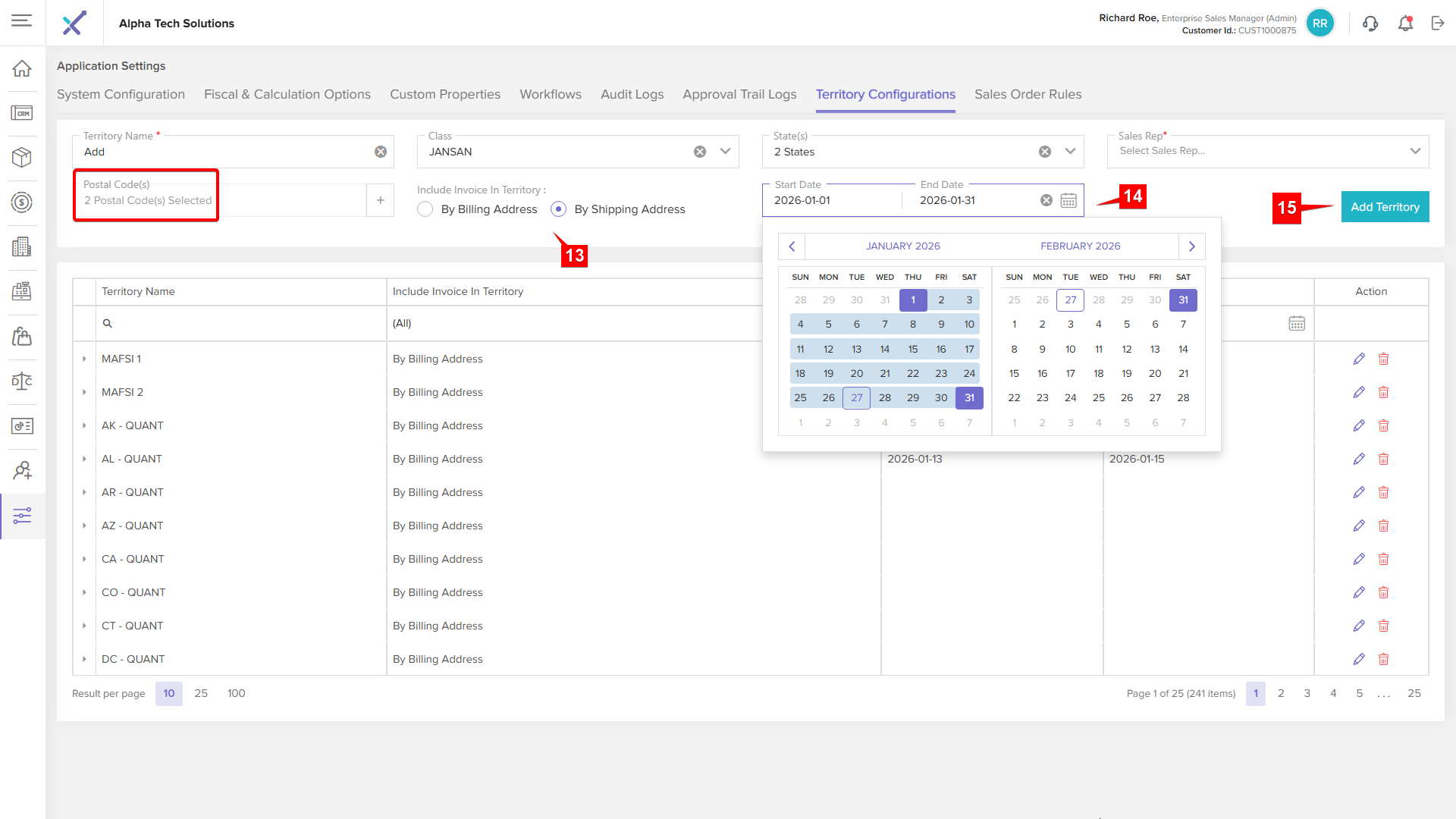

Step 13: Choose Billing or Shipping Address

Step 14: Select Start Date and End Date

Step 15: Click Add Territory

Edit Territory

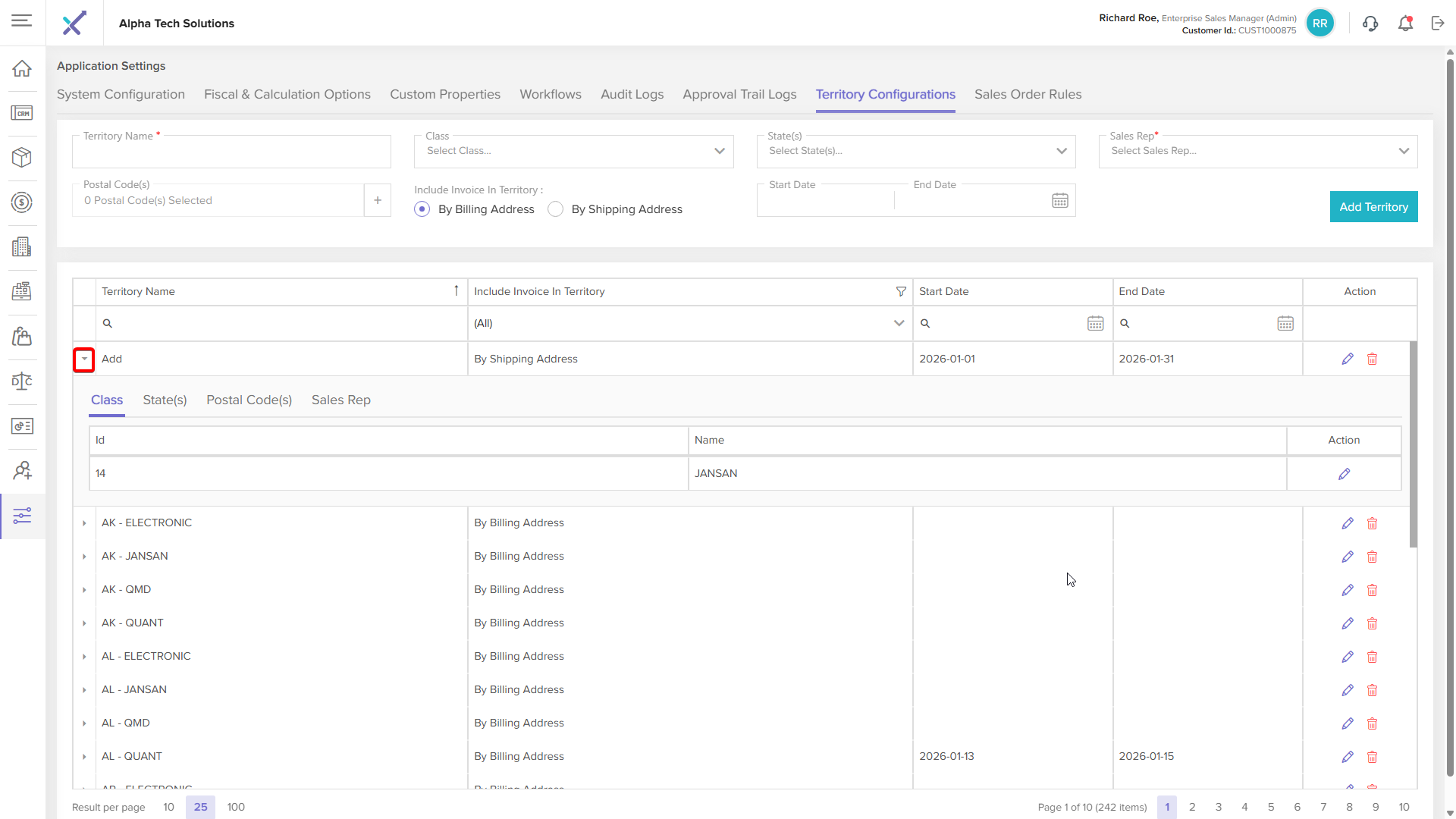

Click the Expand icon to view territory details

Step 1: Click the Edit icon to enable editing

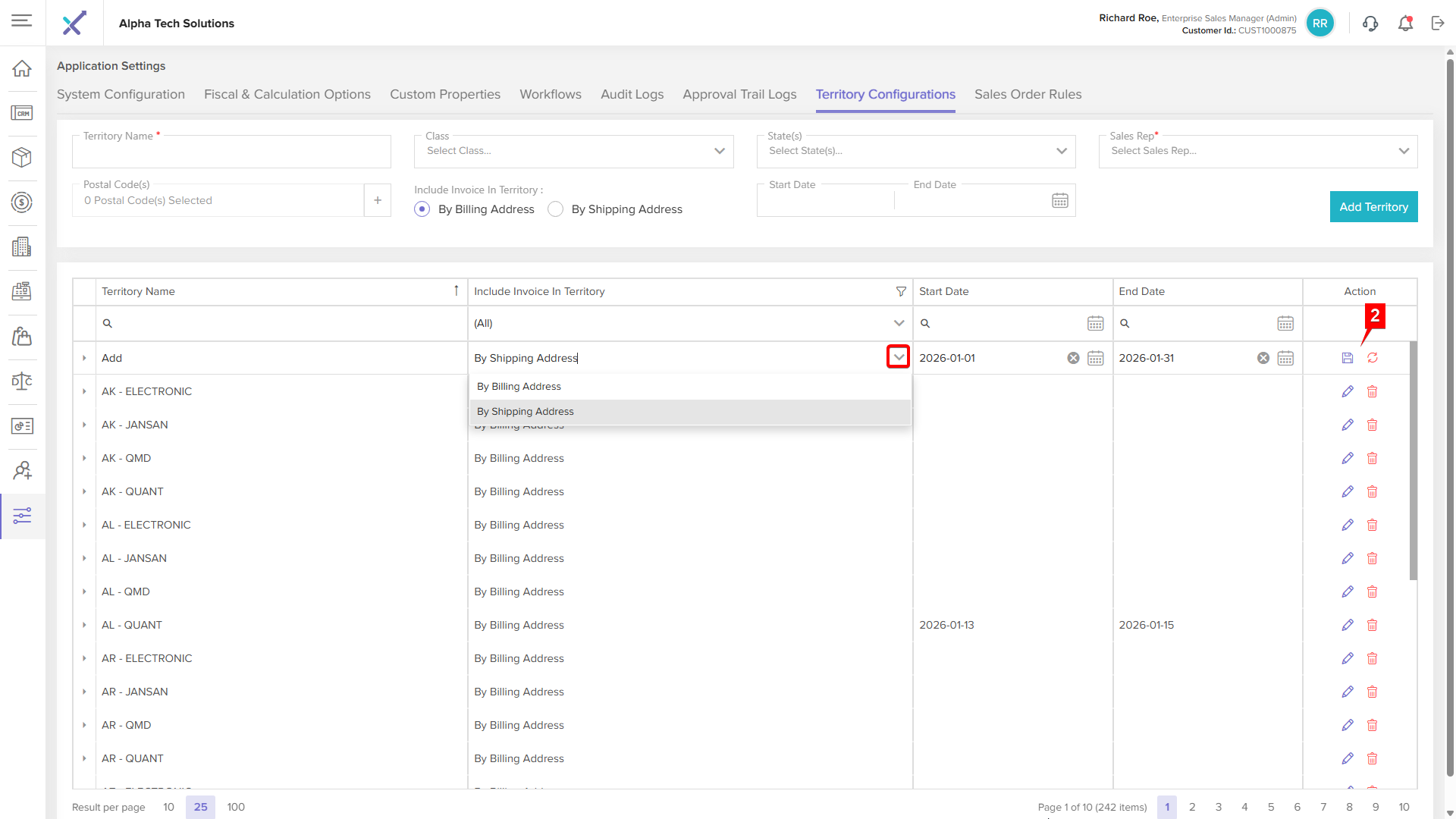

Modify the territory name, dates, or address type using dropdowns

Step 2: Click Save to apply changes or Refresh to cancel edits

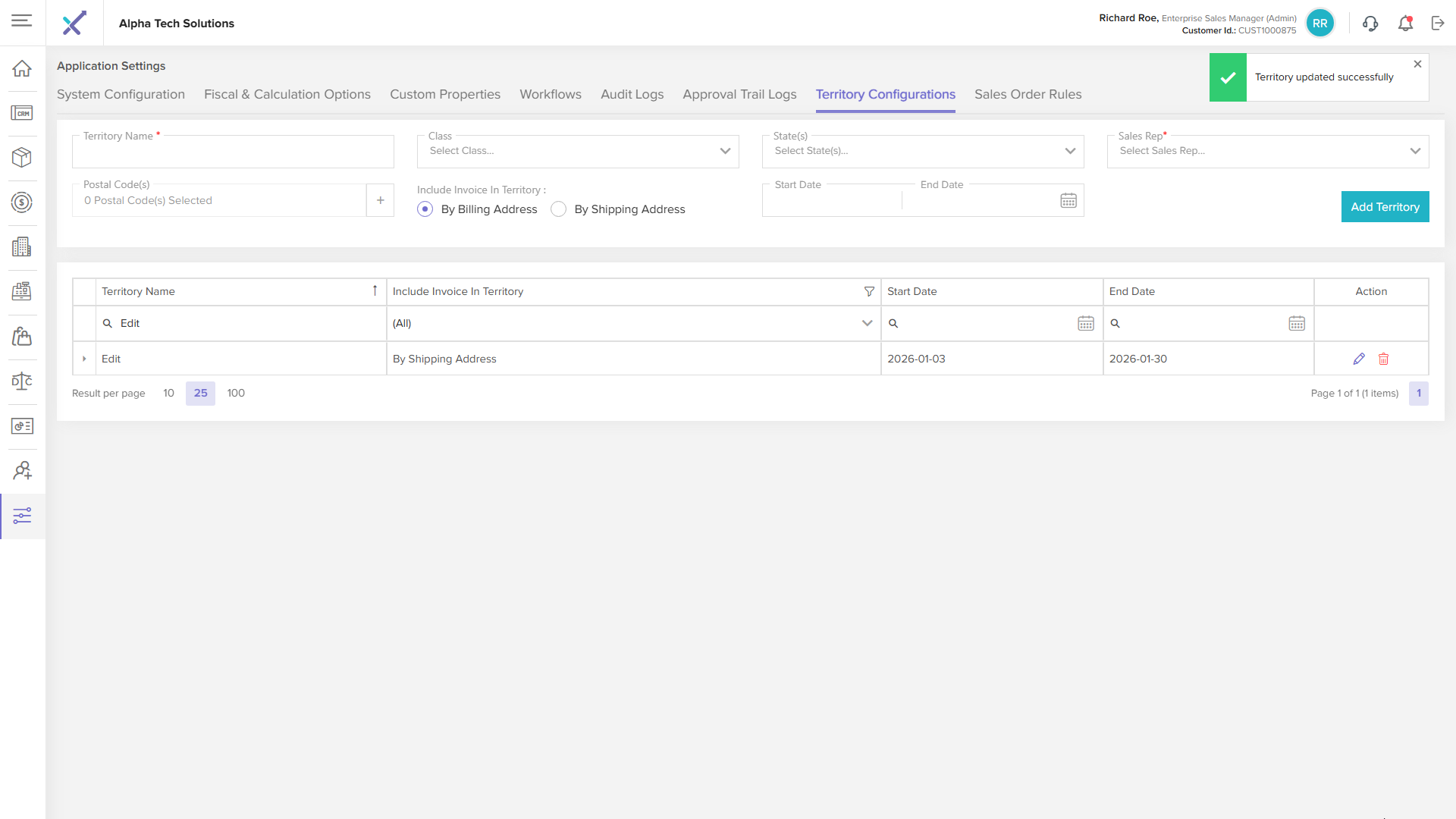

A success message will confirm the update

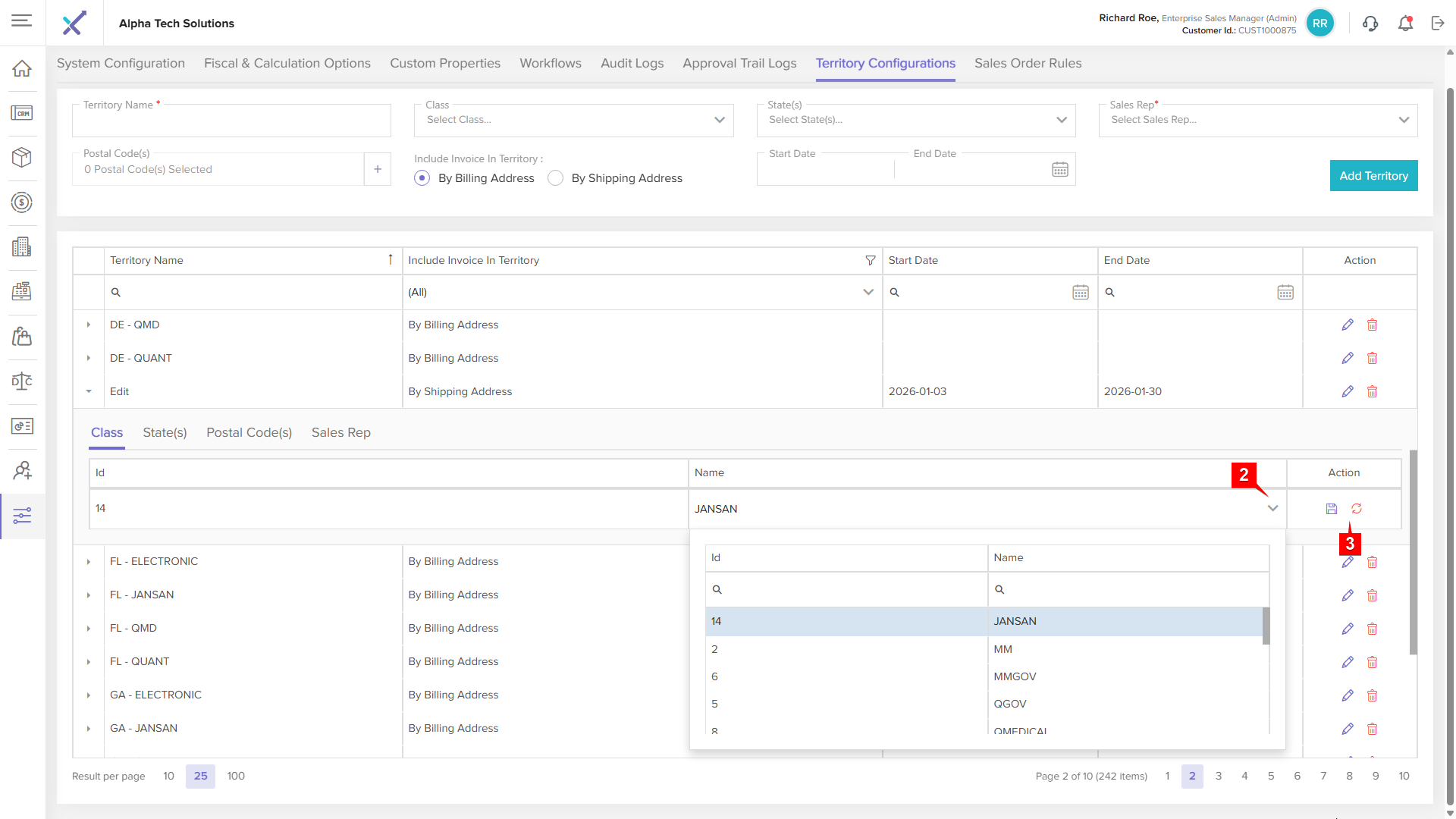

Class Tab

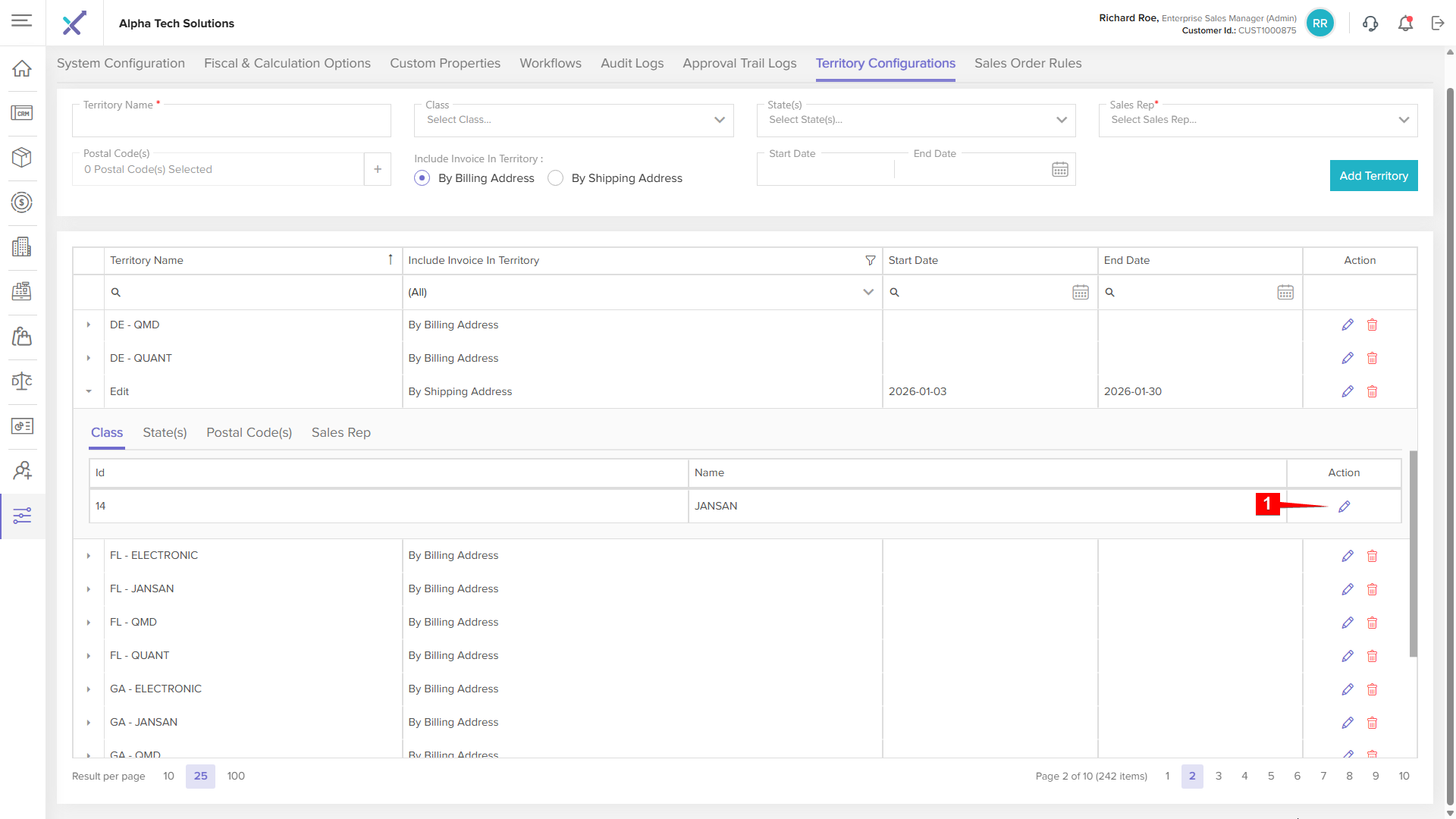

Step 1: Click the Edit icon

Step 2: Select a new class name from the dropdown

Note: The system does not allow changes to the Class ID

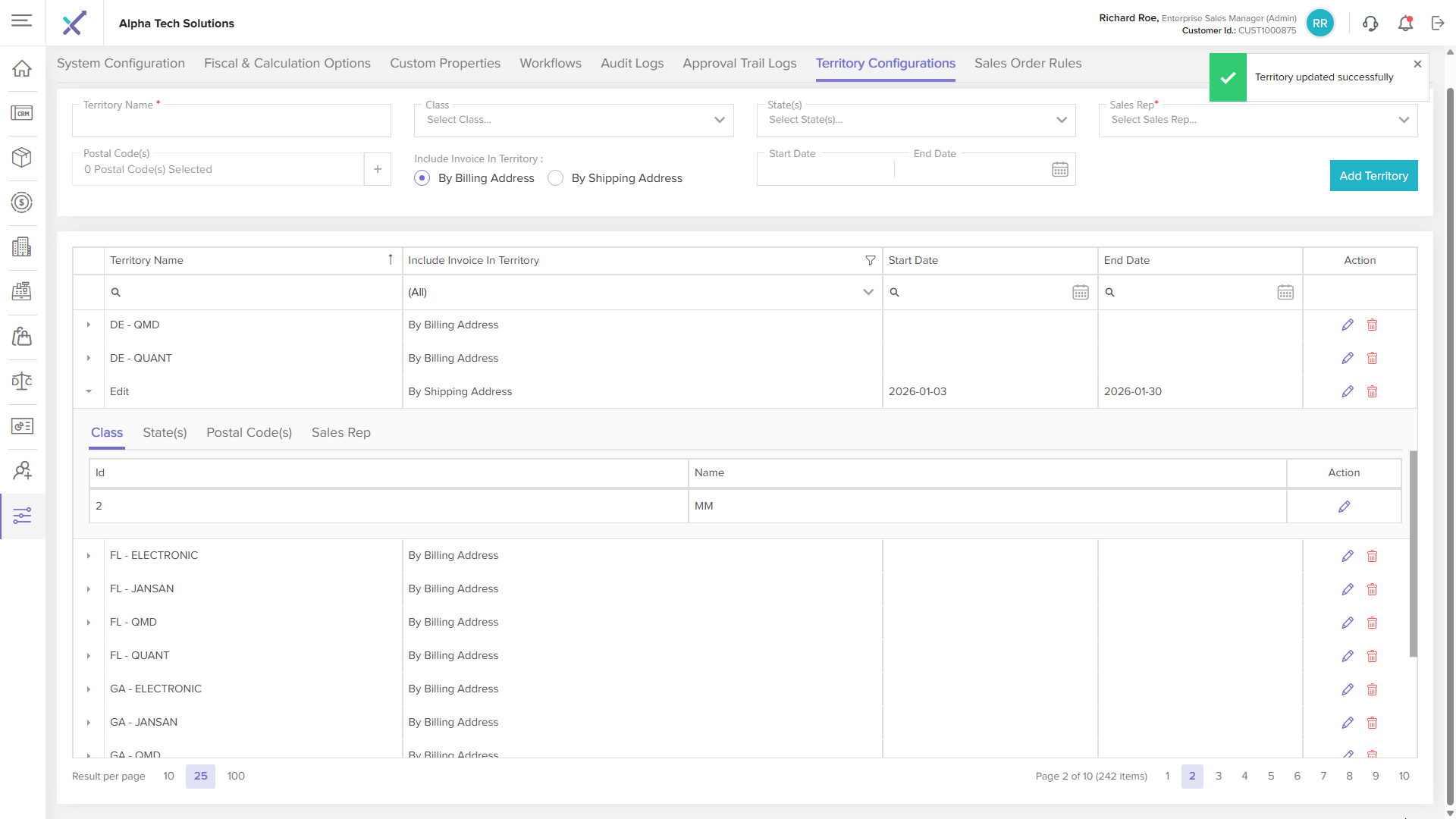

Step 3: Click Save or Refresh to cancel

State(s) Tab

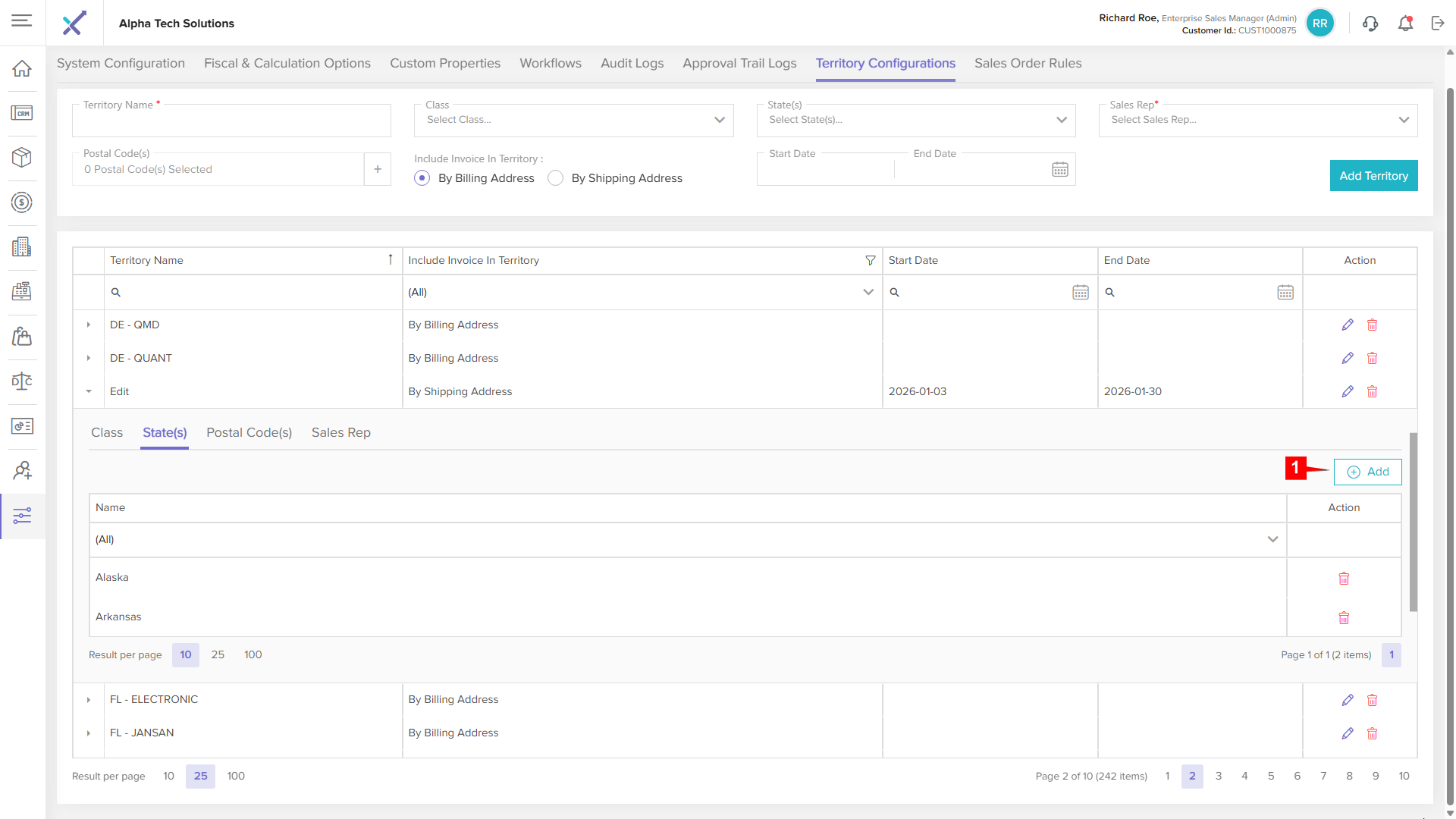

Step 1: Click Add

Step 2: Select desired states via checkboxes, and click Add again

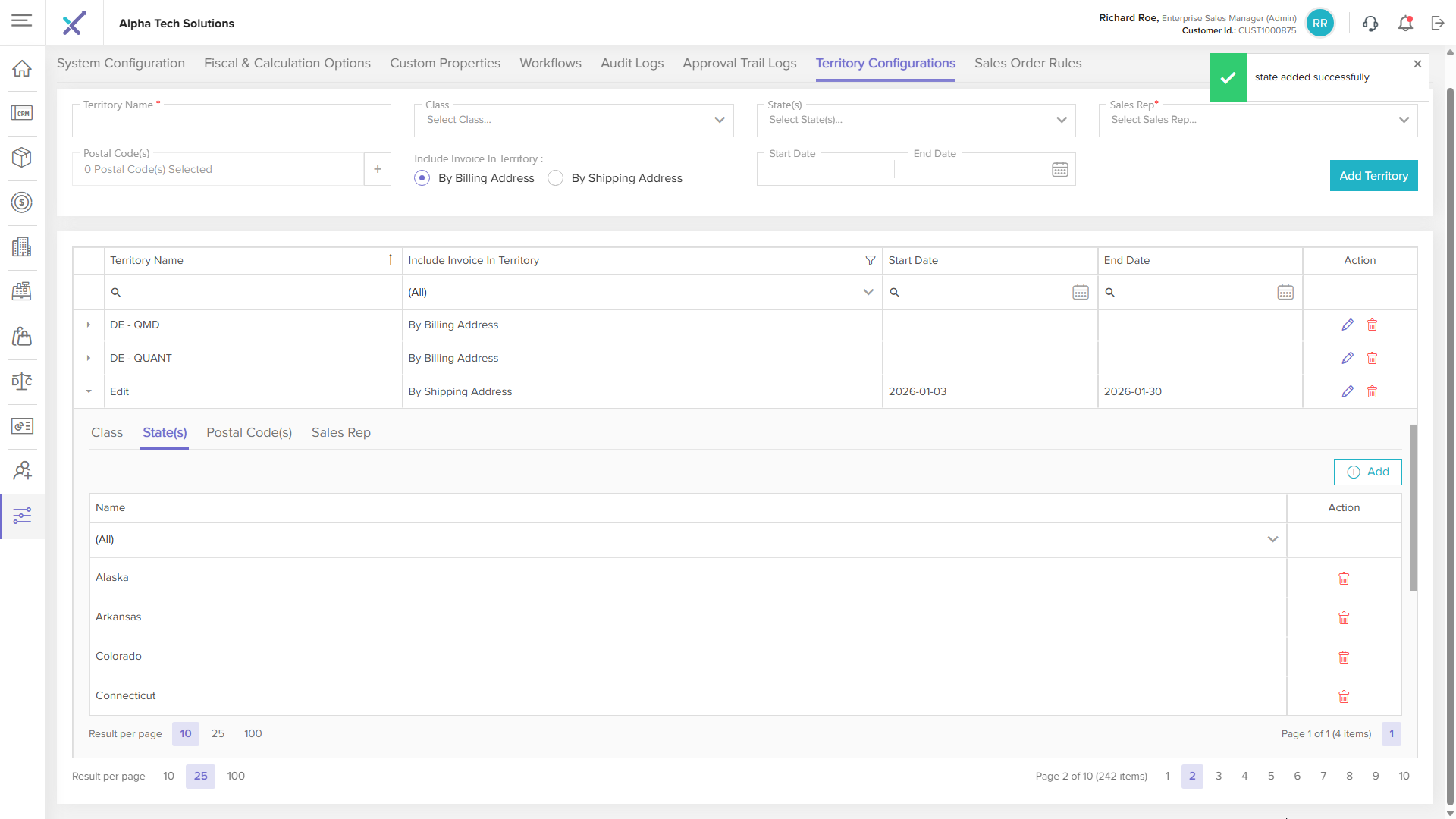

A success message will confirm the addition

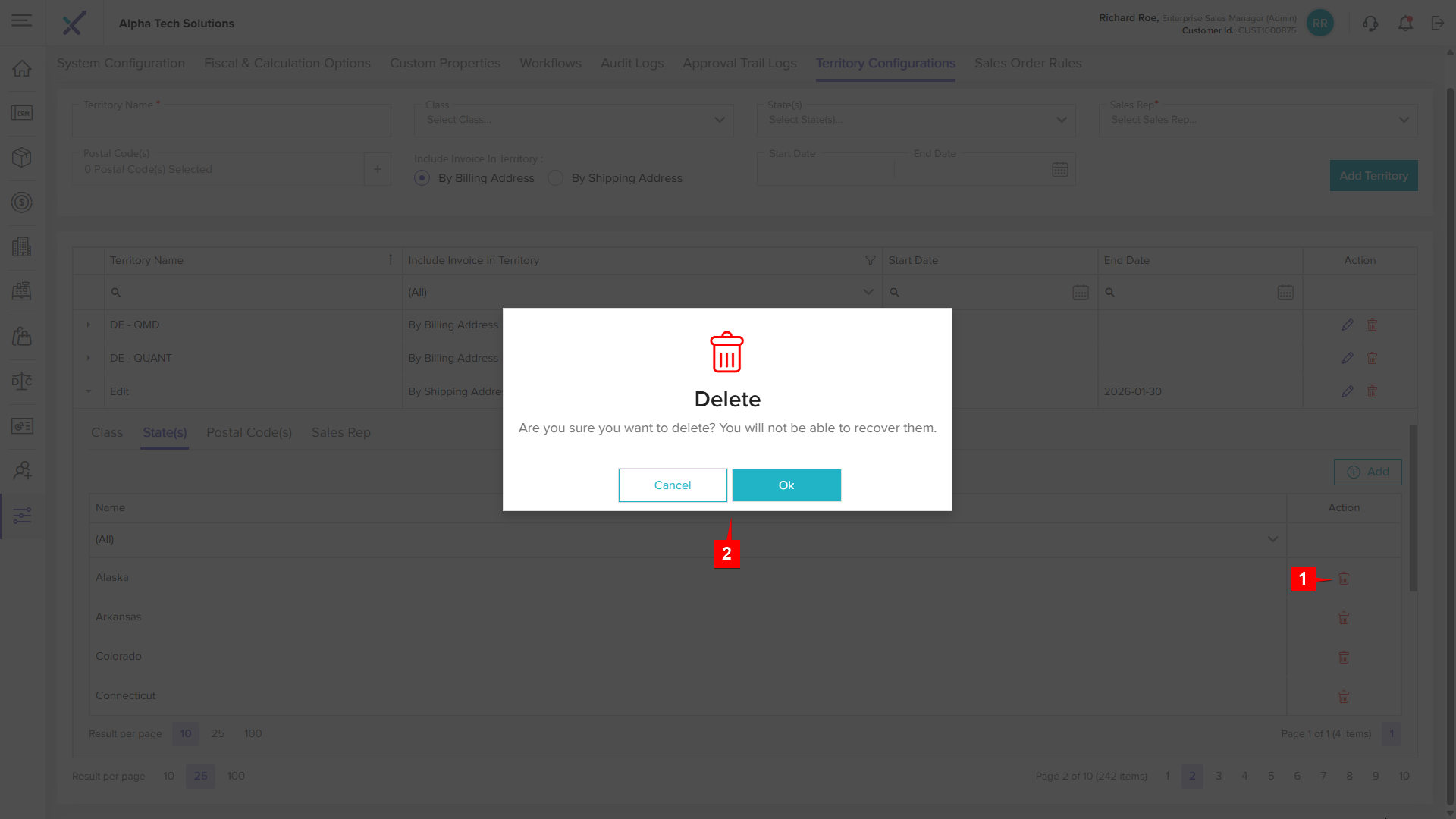

Step 1: Click the Delete icon next to the states

Step 2: Confirm by clicking OK to delete, or cancel to abort the action

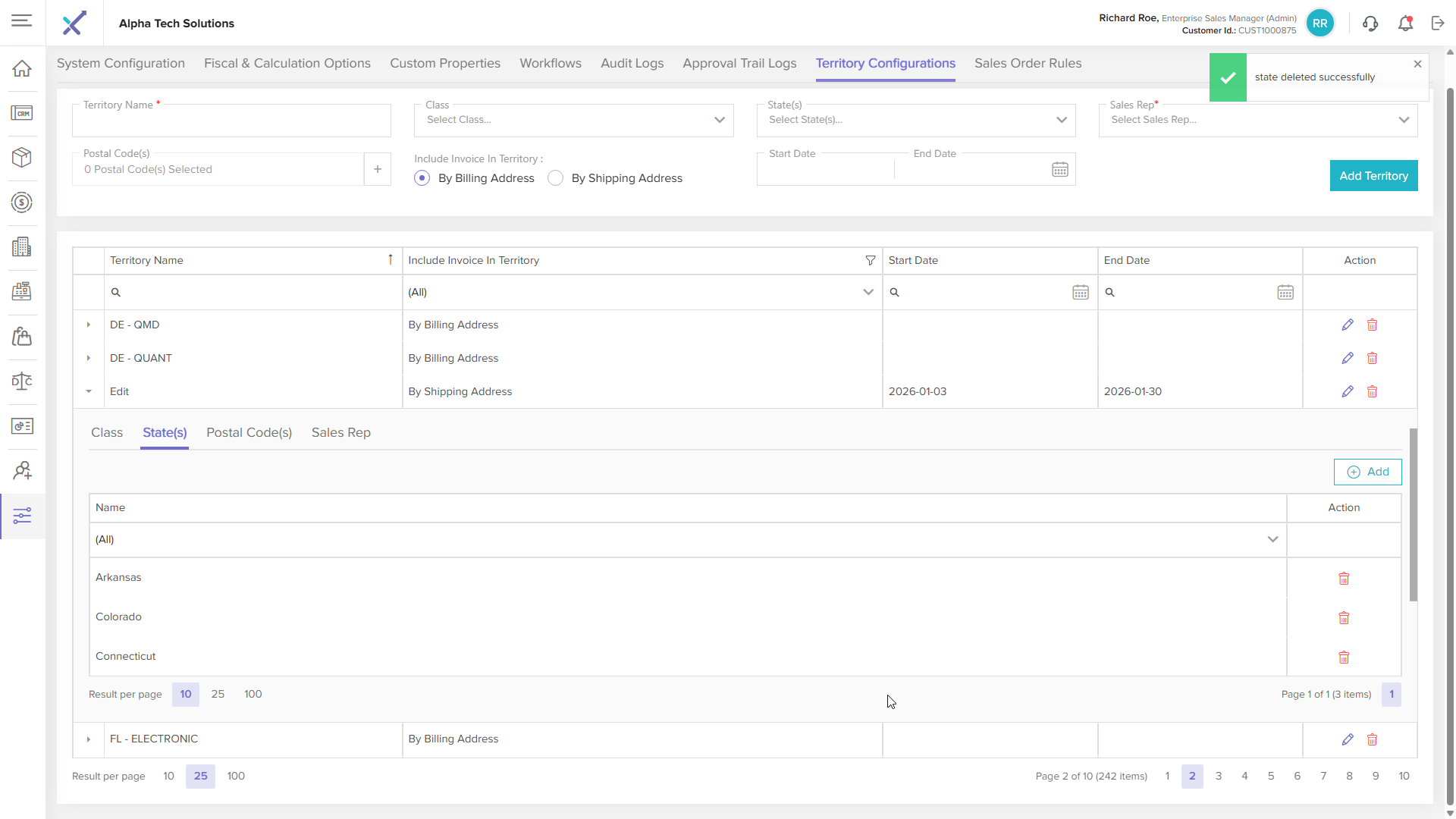

A success message will confirm the deletion

Postal Code(s) Tab

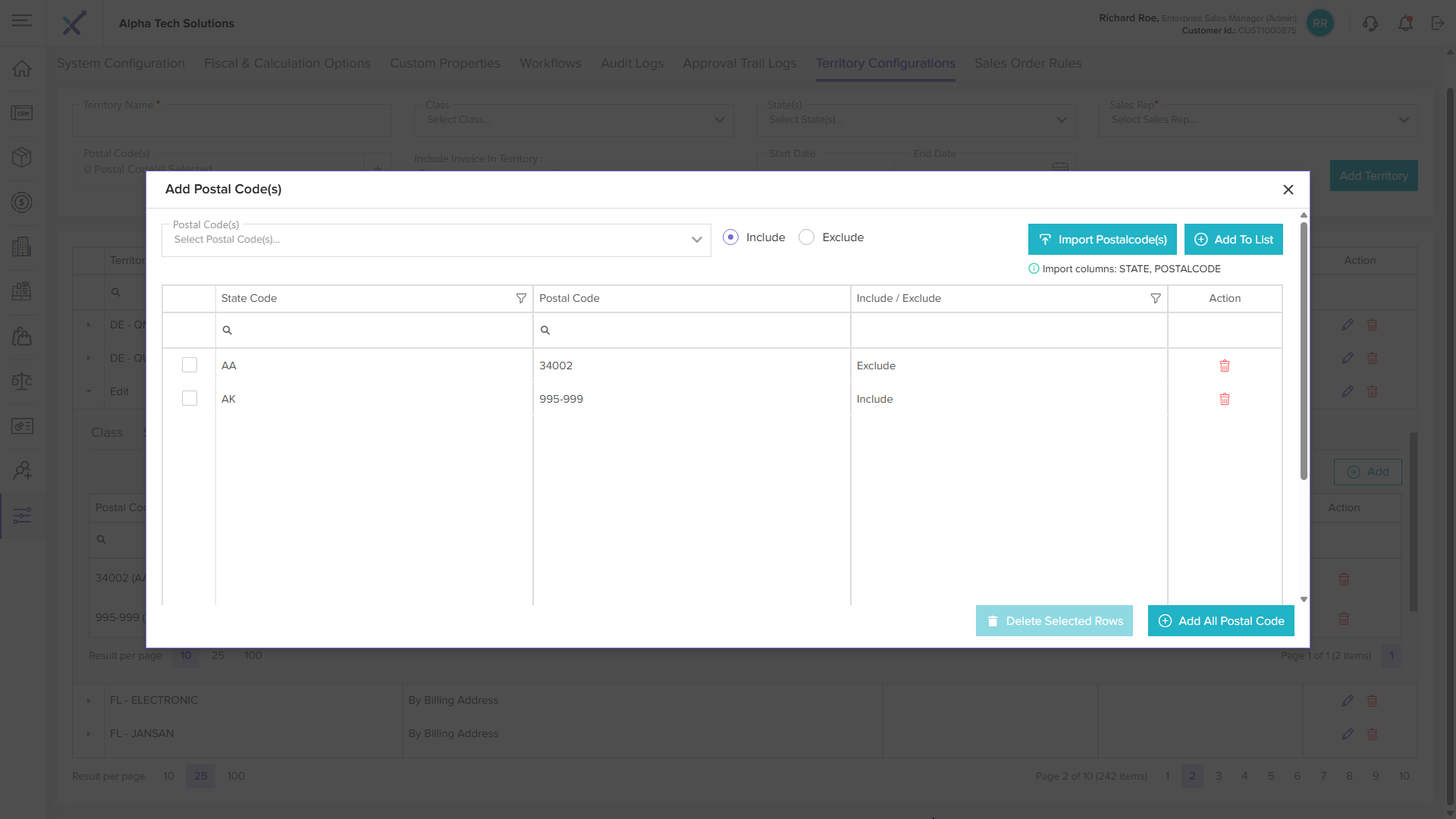

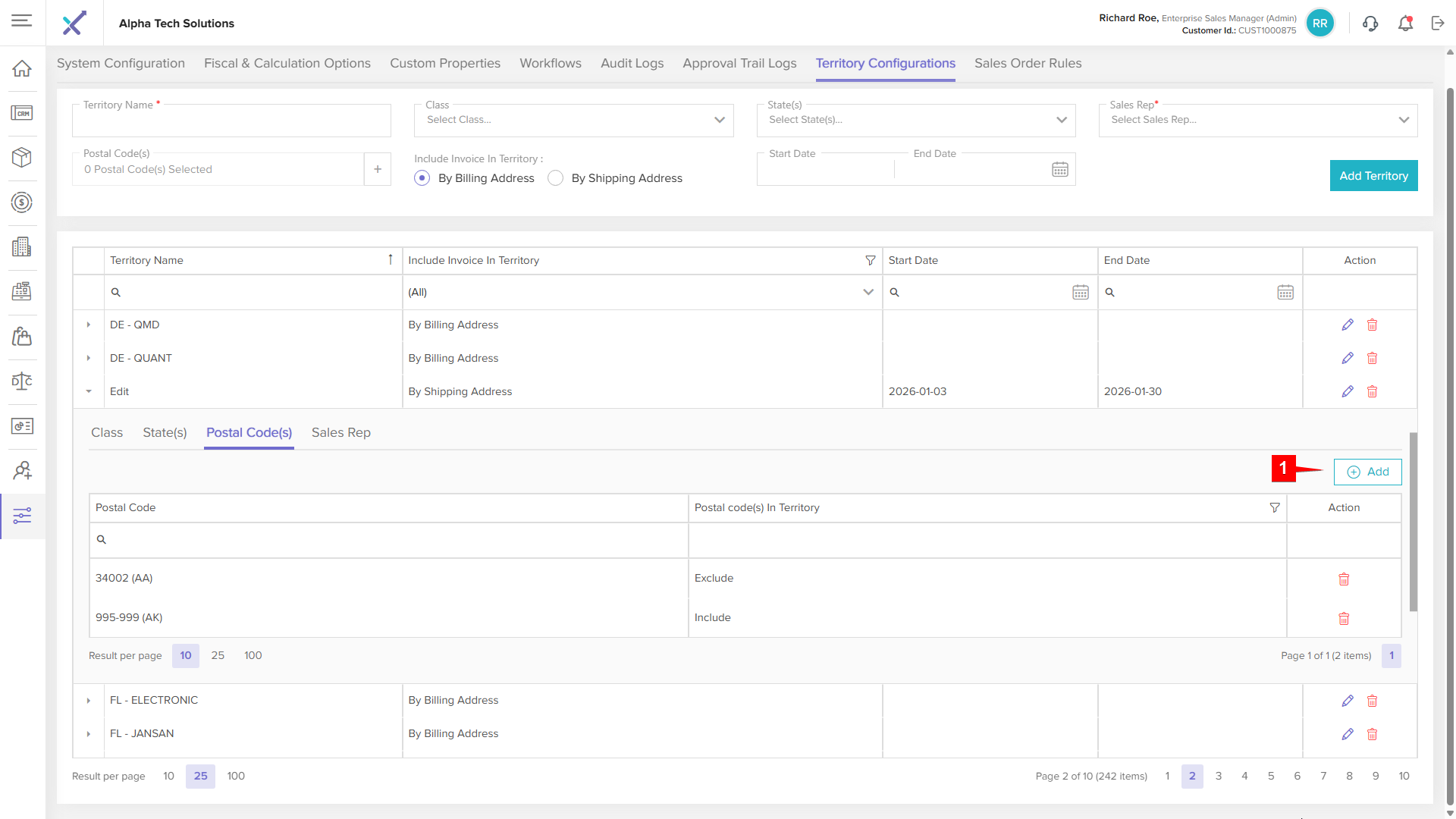

Step 1: Click Add to open the postal code popup

Note: Same process as in Add Territory Postal Code section

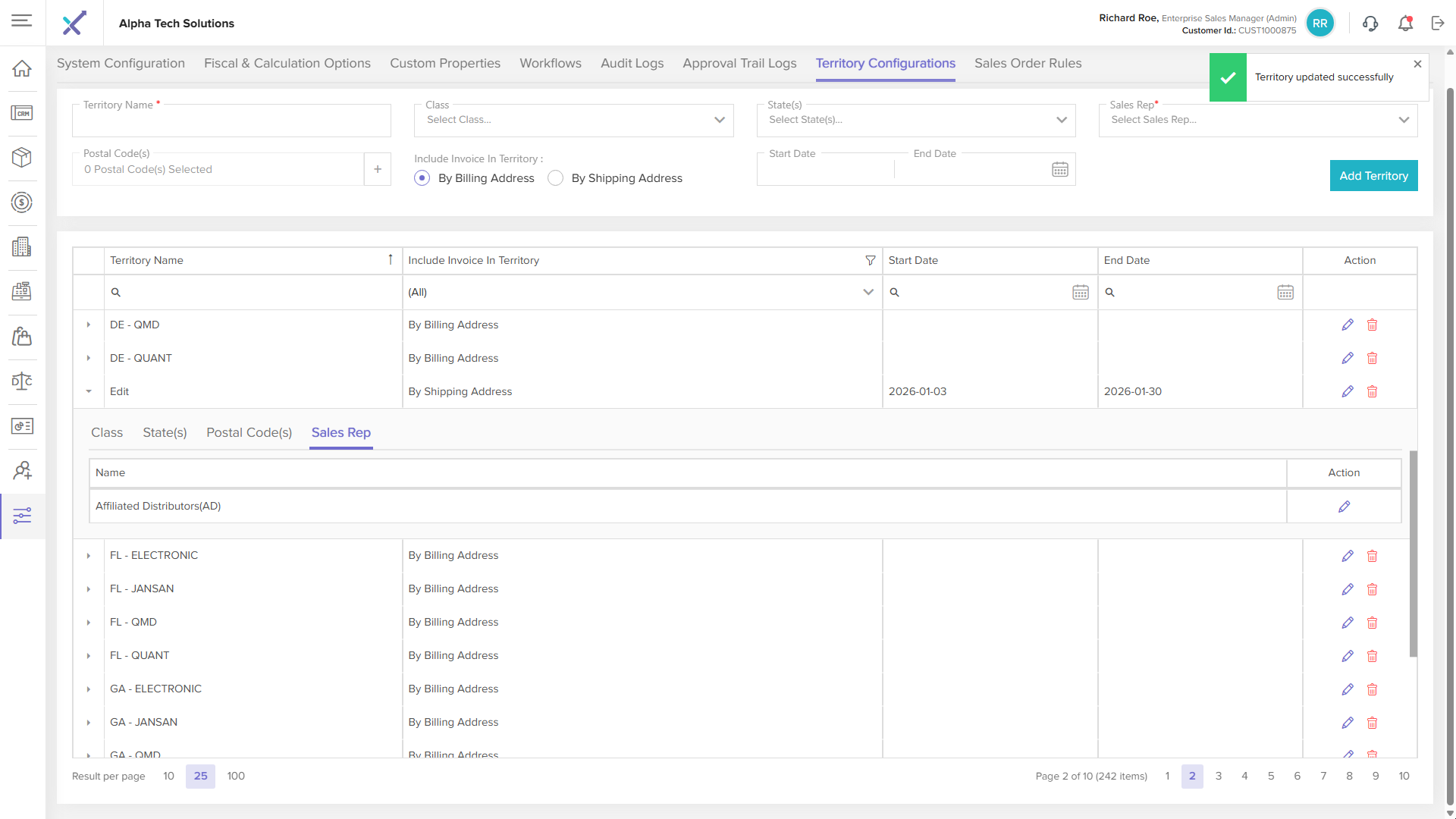

Sales Rep Tab

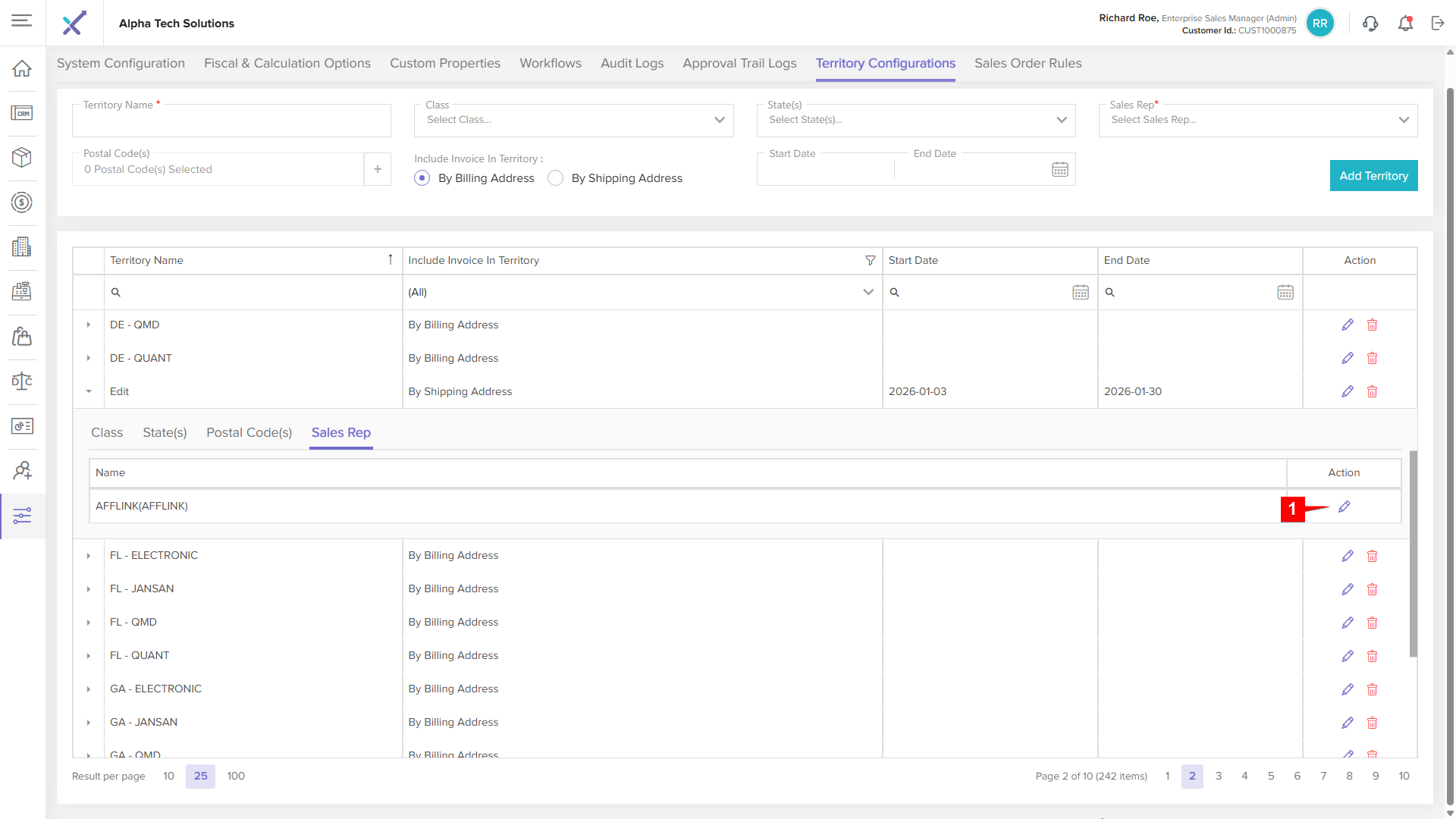

Step 1: Click the Edit icon

Step 2: Click drop down icon and select sales rep from list

Step 3: Click Save to apply changes or Refresh to cancel

A success message will confirm the update

Delete Territory

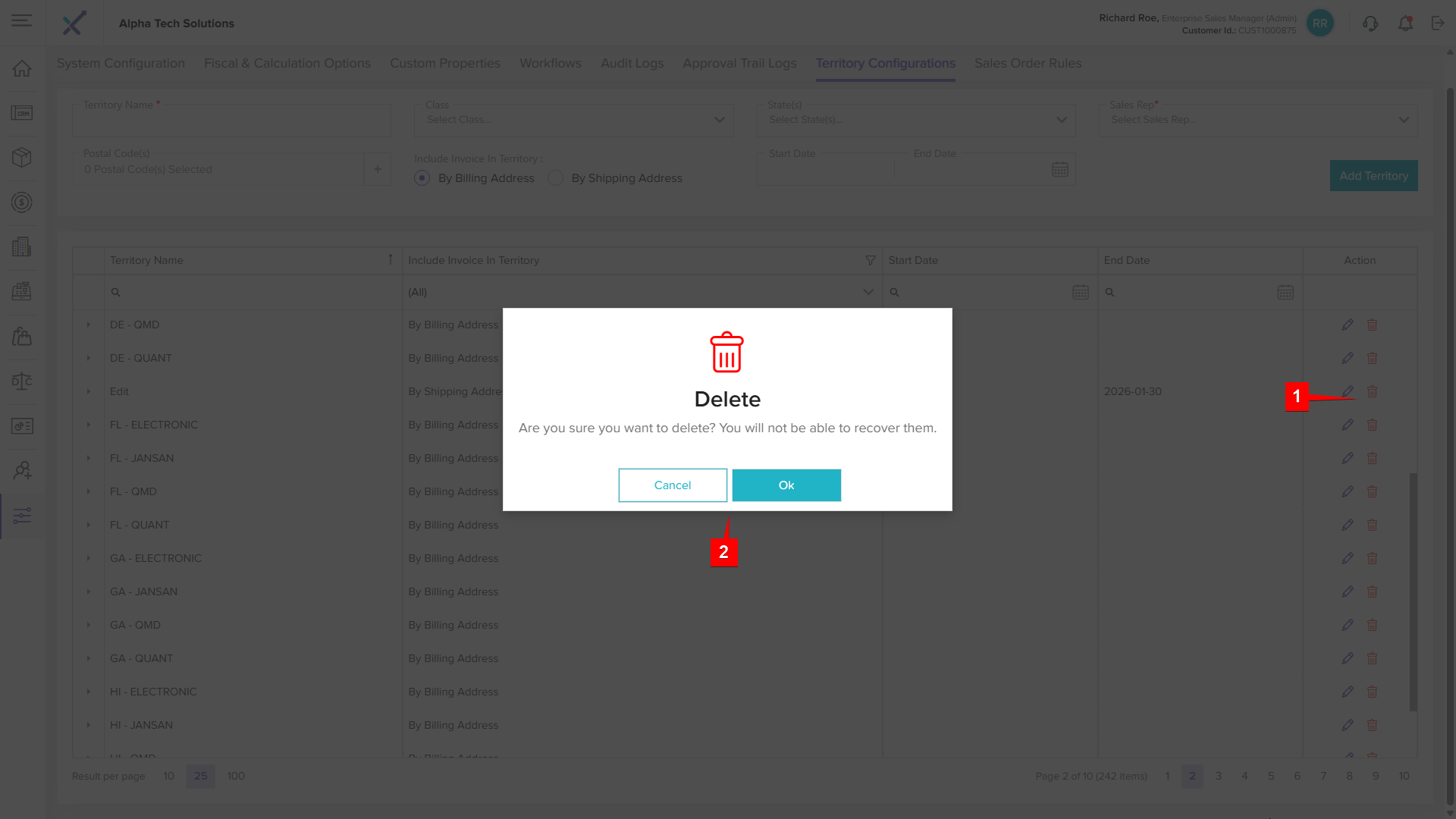

Step 1: Click the Delete icon next to the territories

Step 2: Confirm by clicking OK to delete, or cancel to abort the action

​

​

​

​
